US Pipe and Foundry - Chattanooga, TN
U.S. Pipe started out as Chattanooga Foundry and Pipe Company in 1882, becoming U.S. Pipe in 1899. U.S. Pipe did not manufacture fire hydrants until 1966, when the company acquired the assets and business of A.P. Smith Manufacturing of East Orange, NJ. A.P. Smith had been making fire hydrants since 1896. Hydrant production moved to Chattanooga, TN in 1970. In 2006, U.S. Pipe acquired the Mueller Company via their parent company, Walter Industries. U.S. Pipe's hydrant production ceased in 2007 with the formation of Mueller Water Products Inc., a publicly traded company formed from the former Mueller Company and U.S. Pipe. See also A.P. Smith Mfg. Co
  'Series S' 2 Piece Barrel "Protectop flange" model
These Series S (formerly called O'Brien) hydrants with the breakable 2 pc. clamp arrangement at the flange joint with the trademark name of "Protectop" flange were previously made by A.P. Smith.
2107
Nozzles: 2x 2"
Size: 4" V.O.
Dated: 1981
Location: Jeff K. collection
Photo: © 2003, J. Kaminski

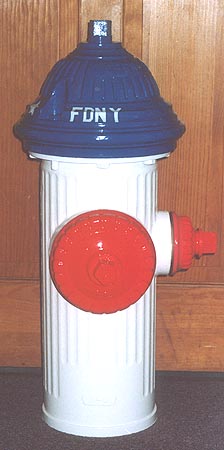

1903
Nozzles: 1x 2",1x 4"
Size: 4" V.O.
Dated: 1983
Note: NYC Spec
Location: Jeff K. collection
Photo: © 2002, J. Kaminski

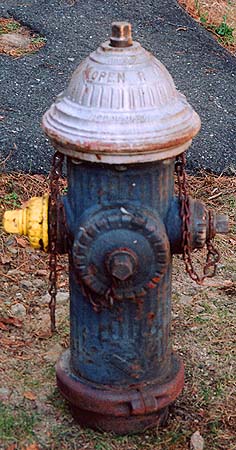

2108
Nozzles: 2x 2", 1x 5"
Size: 4" V.O.
Dated: 1981
Location: Jeff K. collection
Photo: © 2003, J. Kaminski
1457
Nozzles: 3x 2"
Size: 5" VO, ~8.5" OD
Dated: 1989
Location: Rhode Island
Photo: © 2001, J. Kaminski
2393
Nozzles: 2x 2", 1x 4.5"
Size: ? V.O.
Note: smooth upper barrel
Location: Jeff K. collection
Photo: © 2006, J. Kaminski

We are uncertain of the model designation of these newer hydrants. They have a tamper proof bonnet and cap design.
  • With #2180 there is no recess in the bonnet for the two bonnet bolts like the above model; but rather the bonnet is secured with bolts through the barrel flange into tapped holes in the bonnet.
  • 1398
    Nozzles: 1x 4"
    Size: ~5" VO, ~8.5" OD
    Location: Steve P. collection
    Photo: © 2001, J. Anderson
    2180
    Nozzles: 1x 4"
    Size: ~5" VO, 1988
    Note: embossed "PWD 665790" on bonnet & barrel
    Location: Jason C. collection
    Photo: © 2004, J. Cherry

      High Pressure models
    The O'Brien high pressure model continued to be manufactured after U.S. Pipe bought A.P. Smith. We are unsure of the model name associated with the smooth barrel hydrant shown below.
    0134
    Model: O'Brien
    Nozzles: 2x ~4"
    Note: cast for Philadelphia Water Bureau
    Location: Philadelphia, PA
    Photo: © E. Kennedy

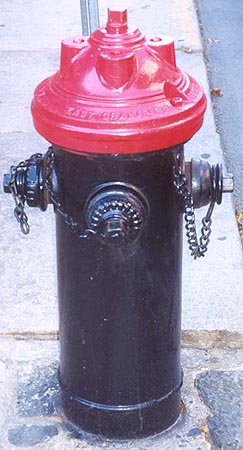

    1524
    Model: ?
    Nozzles: 3x 2"
    Size: ~6" V.O.
    Dated: 1968
    Location: Boston, MA
    Photo: © 2001, J. Kaminski

      H200 Series and Sentinal models
  • The H205 model that was made A.P.Smith has a fluted barrel and bonnet like the earlier O'Brien model. The H205 model shown below made by US Pipe has a smooth bonnet and barrel. Hydrants dated 1974 - 1981 have been documented. FH.O does not know the difference between the identical looking H200 and H205 models.
  • The Sentinal model has the same "Protectop" flange seen on the O'Brien model at the top of the page.

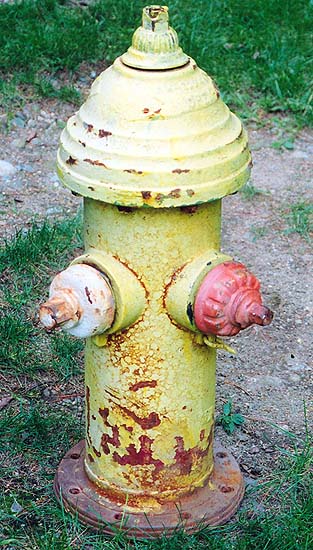

  • 2376
    Model: H200
    Nozzles: 2x 2
    Size: 4 1/2" V.O.
    Dated: 1980
    Location: Jeff K. collection
    Photo: © 2006, J. Kaminski
    2095
    Model: H200
    Nozzles: 2x 2, 1x 4"
    Size: 4 5/8" V.O.
    Dated: 1976
    Location: Jeff K. collection
    Photo: © 2003, J. Kaminski
    1214
    Model: H205
    Nozzles: 2x 2, 1x ~4"
    Size: ? V.O.
    Dated: 1975
    Location: Independence, CA
    Photo: © B. Norden
    0274
    Model: Sentinal
    Nozzles: 2x 4"
    Size: ? V.O.
    Dated: 1978
    Location: Louisville, KY
    Photo: © E. Kennedy

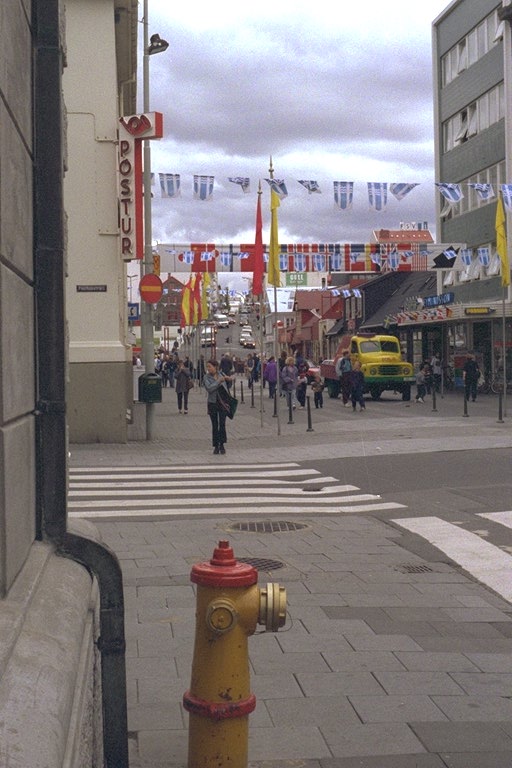

    0144
    Model: Sentinal
    Nozzles: 2x ?, 1x ?
    Size: ? V.O.
    Dated: 1981
    Location: Reykjavik, Iceland
    Photo: © 1999, Lee P.

      Metropolitan 250 model
    Note that the standard Met 250 has a smooth barrel that is tapered; whereas the Met 250 Model 94 has a smooth straight (non-tapered) barrel.
  • Both have the "Protectop" flange.
  • Made in two valve opening sizes; 4" and 5".
  • 1543
    Model: Met 250 M94
    Size: 4" V.O.
    Nozzles: 2x 2"
    Dated: 1984
    Location: Massachusetts
    Photo: ©2002 J. Kaminski

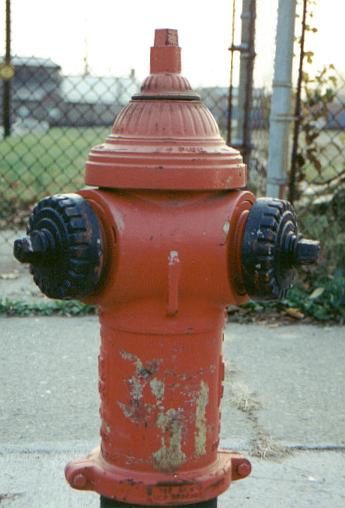

    0273
    Model: Met 250 M94
    Size: ? V.O.
    Nozzles: 2x 4"
    Dated: 1998
    Location: Louisville, KY
    Photo: © E. Kennedy

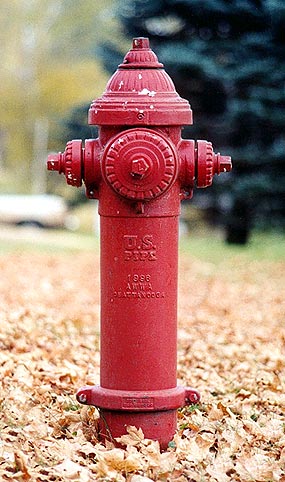

    0698
    Model: Met 250 M94 EXT
    Size: 4" V.O.
    Nozzles: 2x 2", 1x ~4"
    Dated: 1998
    Location: Viroqua, WI
    Photo: © J. Quist

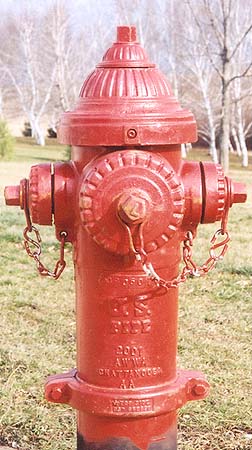

    2116
    Model: Met 250 M94
    Size: 5" V.O.
    Nozzles: 2x 2", 1x 4"
    Dated: 2001
    Location: John A. collection
    Photo: © 2003, J. Anderson
    2253
    Model: Met 250
    Size: 5" V.O.
    Nozzles: 2x 2", 1x 4"
    Dated: 1984
    Note: embossed "USP"
    Location: Jeff K. collection
    Photo: © J. Kaminski
    0173
    Model: Met 250
    Size: 5" V.O.
    Nozzles: 2x 2", 1x 4"
    Dated: 1996
    Note: embossed "U.S.Pipe"
    Location: Wisconsin Dells, WI
    Photo: © 2001, J. Anderson

      Mueller Centurion Clone
    This model is very similar to the Mueller Centurion, with minor stylistic differences. Parts are believed to be interchangeable with the Mueller hydrant. The parent company of U.S. Pipe now owns the Mueller Company. The future of this model is unknown.

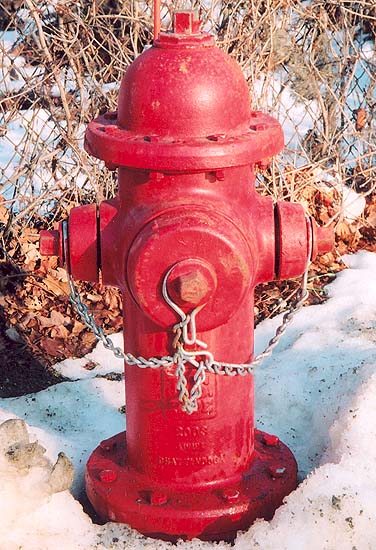

    2401
    Model: ?
    Size: 5.25" V.O.
    Nozzles: 2x 2", 1x 4"
    Dated: 2003
    Location:
    Photo: © J. Kaminski

      City Spec Models

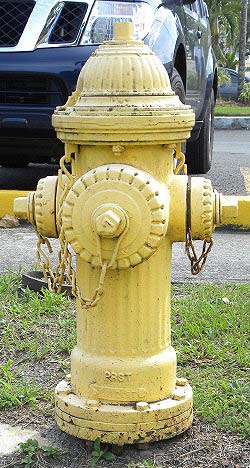

    2530
    Model: Puerto Rico spec
    Size: 4" V.O.
    Nozzles: 2x 2", 1x 4"
    Dated: ?
    Location: Dorado, PR
    Photo: © J. Anderson
