Ludlow Valve Mfg. Co. - Troy, NY
List 90 and List 90-0

  List 90
The List 90 has a unique octagonal barrel and nozzle caps. As documented in an advertisement from the 1930s, it was originally called the Ludlow Diamond self-illuminating Fire Hydrant. It has a two piece barrel with a conventional bolted flange joint. It later evolved into the List 90-0 model shown in the next group below. It was produced in at least 3 sizes from the early 1930's to the mid-1960's. Only the later hydrants are dated. Here is the first page of the List 90 design patent which was filed by the inventor on January 29, 1932.

  • List 90 models, style #1 embossing. Made from 1931--1940, all of these first list 90 hydrants have "patents pending" embossed on the front and rear of the barrel and are not dated.

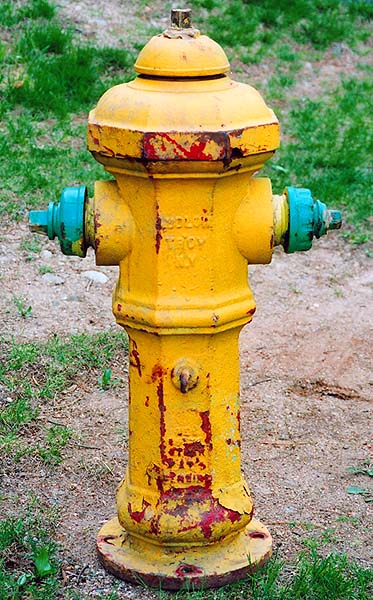

  • 1051
    Nozzles: 2x 2½"
    Size: 4" V.O.
    Private Collection
    Photo: © J. Kaminski
    1047
    Nozzles: 2x 2½", 1x 5"
    Size: 4" V.O.
    Dated: (none)
    Location: Massachusetts
    Photo: © 2001, J. Kaminski
    2103
    Nozzles: 2x 2½"
    Size: 4" V.O.
    Dated: (none)
    Location: Ed M. collection
    Photo: © 2003, E. Masminster
    1359
    Nozzles: 2x 2½", 1x 4"
    Size: 5" V.O.
    Dated: (none)
    Location: Jim S. collection
    Photo: © 2002 J. Kaminski
    0771
    Nozzles: 4x 2½",1x ~4½"
    Size: ~6" V.O.
    Dated: ?
    Location: Dave R. collection
    Photo: © 2001, D. Raupach

  • List 90. Style #2 embossing. 1941--1955. These list 90 hydrants are all year dated, have oval logo with "ludlow" inside, and "patented".

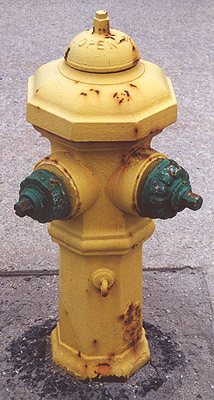

  • 1046
    Nozzles: 2x 2½"
    Size: 4" V.O.
    Dated: 1954
    Location: Massachusetts
    Photo: © 2001, J. Kaminski

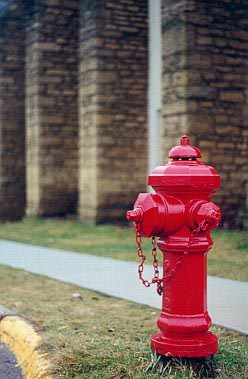

    0106
    Nozzles: 2x 2½", 1x ~4"
    Size: 4" V.O.
    Dated: 1955
    Location: Wisconsin
    Photo: © 1999, J. Quist

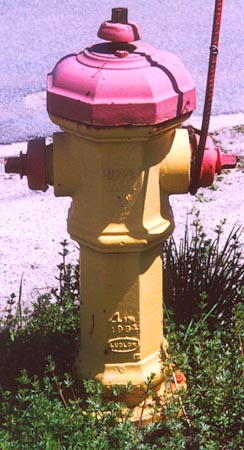

    1045
    Nozzles: 2x 2½"
    Size: 4" V.O.
    Dated: 1964
    Location: Massachusetts
    Photo: © 2002, J. Kaminski

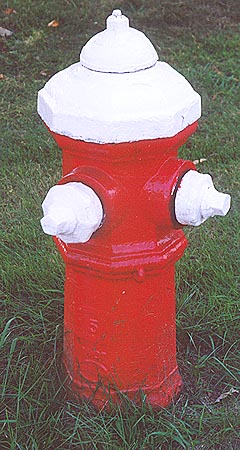

    1484
    Nozzles: 2x 2½"
    Size: 5" V.O.
    Dated: 1962
    Location: Massachusetts
    Photo: © 2001 J. Kaminski
    1341
    Nozzles: 2x 2½", 1x 4½"
    Size: 5" V.O.
    Dated: 1947
    Location: John A. collection
    Photo: © 2001 J. Anderson

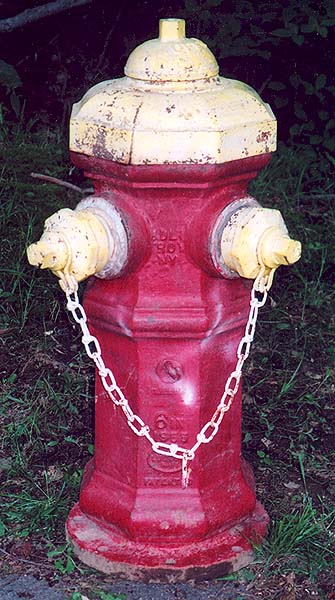

    2462
    Nozzles: 2x 2½"
    Size: 6" V.O.
    Dated: 1955
    Location: Private collection
    Photo courtesy J. Kaminski

      List 90-0
  • List 90-0. Style #2 embossing. 1956--1968. The barrels on these are the same as list 90 from 1941 to 1955. The only difference in appearance is in the bonnet style. Note-- List 90 and List 90-0 bonnets are interchangeable on all Ludlow Diamond hydrants.
  • These hydrants have 0-rings instead of stuffing boxes on the mainvalve stem.
  • List 75-0 and List 90-0 Hydrant Information

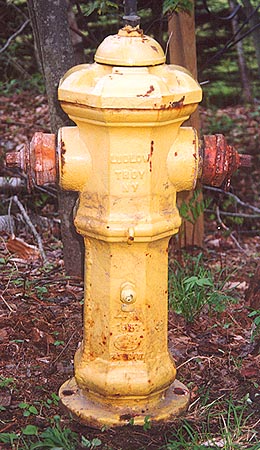

  • 1049
    Nozzles: 2x 2½"
    Size: 4" V.O.
    Dated: 1957
    Location: Jeff K. collection
    Photo: © 2002, J. Kaminski

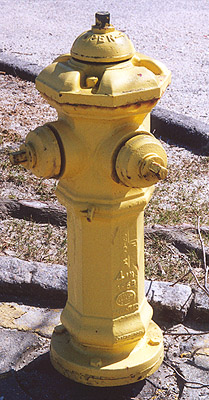

    1048
    Nozzles: 2x 2½"
    Size: 4" V.O.
    Dated: 1959
    Location: Massachusetts
    Photo: © 2001, J. Kaminski

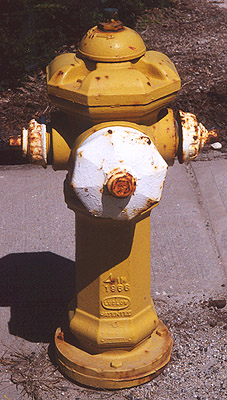

    1050
    Nozzles: 2x 2½", 1x 5"
    Size: 4" V.O.
    Dated: 1966
    Location: Massachusetts
    Photo: © 2001, J. Kaminski
    1527
    Nozzles: 2x 2½"
    Size: 5" V.O.
    Dated: 1958
    Location: Massachusetts
    Photo: © 2001, J. Kaminski
    1052
    Nozzles: 2x 2½", 1x 4½"
    Size: 5" V.O.
    Dated: 1959
    Location: New York
    Photo: © 2001, J. Kaminski
