Ludlow Valve Mfg. Co. - Troy, NY List 75 Multiple Valve |
All vintages of multiple valve (internally
gated) List 75s are found on this page. They are presented below in 2 groups
based on the style of bonnet. All are of a one piece barrel design.
(See also similar looking High Pressure hydrants.) |
|
The bonnets of this group look identical to
those of standard List 75 hydrants.
|

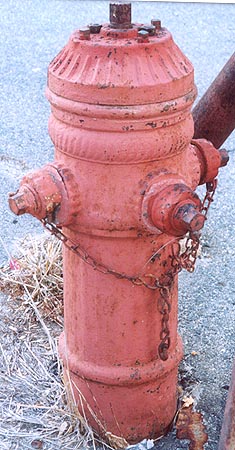

1480 Nozzles: 3x 2½" Size: ~7¾" barrel I.D. Location: Massachusetts Photo: © 2001, J. Kaminski |

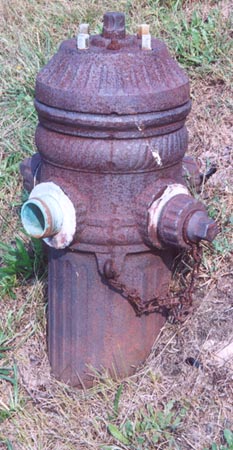

1481 Nozzles: 4x 2½" Size: ~7¾" barrel I.D. Location: Massachusetts Photo: © 2001, J. Kaminski |

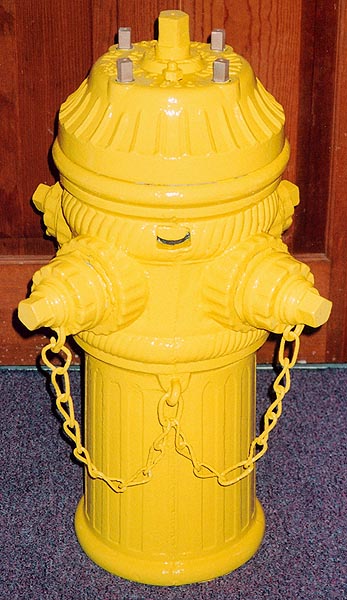

2084 Nozzles: 4x 2½" Size: 8" barrel I.D. Location: Jeff K. collection Photo: © 2003, J. Kaminski |

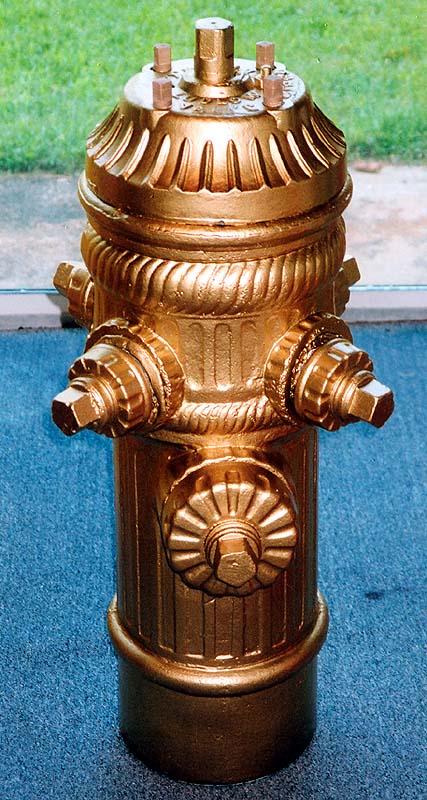

0707 Nozzles: 4x 2½", 1x 4" (not gated) Size: ~7¾" barrel I.D. Location: Private collection Photo: © J. Kaminski |
|
This bonnet style has a distinctly different shape but retains
the fluting on the sides.
|

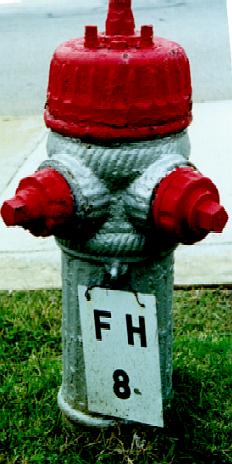

0114 Nozzles: 2x 2½" Size: 7" barrel I.D. Logos: ? Location: Danville, VA Photo: © 1999, E. Kennedy |

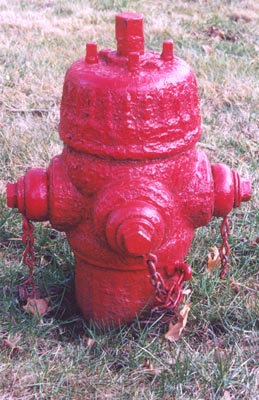

1712 Nozzles: 3x 2½" Size: 7" barrel I.D. Logos: 3½" wide Location: Connecticut Photo: © 2002, J. Kaminski |

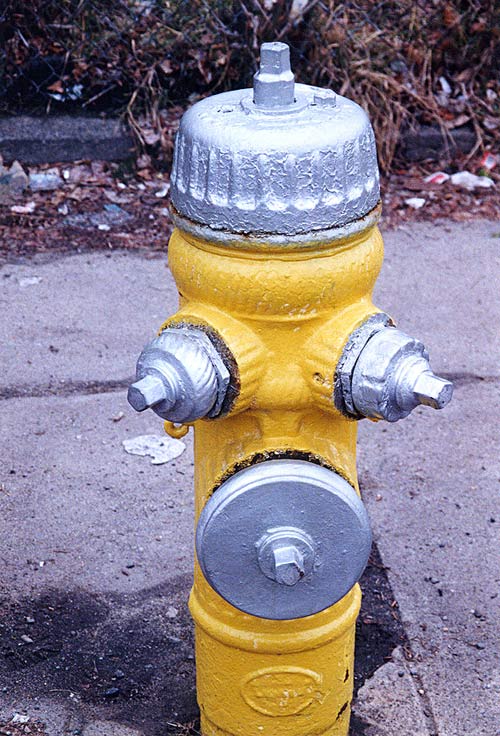

1026 Nozzles: 2x 2½", 1x 5" (not gated) Size: 7" barrel I.D. Logos: 3½" wide below O.D. rib Location: Massachusetts Photo: © 2001, J. Kaminski |
