Ludlow Valve Mfg. Co. - Troy, NY
List 75s - Part 3 (wide or no border oval logo on barrel)

  List 75: Logo is 4¼" width oval with NO border
This group is believed to be the next step in the evolution of the 1 pc. barrel List 75 model.
  • Note the lack of the quotation marks on either side of Ludlow.
  • The oval of this logo has NO border. The two logos per hydrant can be found on the front & back of the barrel.
  • The upper barrel below the bonnet lacks the two 'nut pockets' found on most earlier List 75s. This is also the case for all subsequent versions of the List 75.
  • The appropriate bonnet for this group of List 75s may be without a patent date.

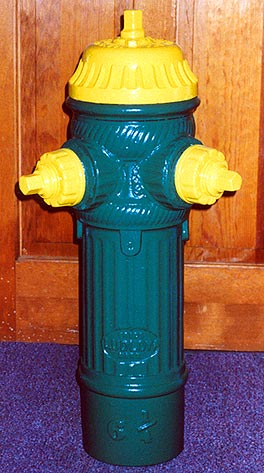

  • 0887
    Nozzles: 2x 2½"
    Size: 6¼" barrel I.D.
    Location: Jeff K. collection
    Photo: © 2001, J. Kaminski

      List 75: Logo is 4¼" width oval with wide border
    This group is believed to be the last step in the evolution of the 1 pc. barrel List 75 model.
  • Note the continued lack of the quotation marks on either side of Ludlow.
  • The oval of this logo is changed to have a WIDE (5/8") border that is the same height as the fluting. The two logos per hydrant can be found on the front & back of the barrel.
  • The appropriate bonnet for this group of List 75s may be without a patent date.
  • Hydrants of later manufacture of this group have the V.O. size and year of manufacture cast below the O.D. rib. Early hydrants have nothing cast below.

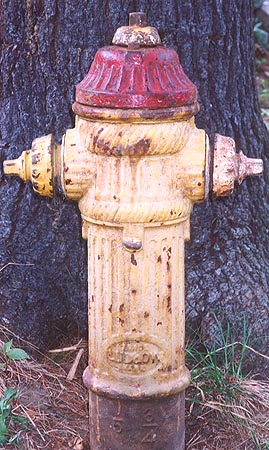

  • 1762
    Nozzles: 2x 2½"
    Size: 5¾" barrel I.D.
    Note: ~4" VO/undated
    Location: Jim S. collection
    Photo: © 2002, J. Kaminski
    1024
    Nozzles: 2x 2½", 1x 4½"
    Size: 5¾" barrel I.D.
    Note: 4" V.O. / 1945
    Location: John A. collection
    Photo: © 2001, J. Anderson

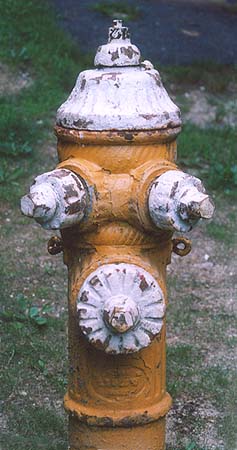

    2257
    Nozzles: 2x 2½", 1x 4"
    Size: 5¾" barrel I.D.
    Note: ~4 VO/undated
    Location: Jeff K. collection
    Photo: © 2004, J. Kaminski

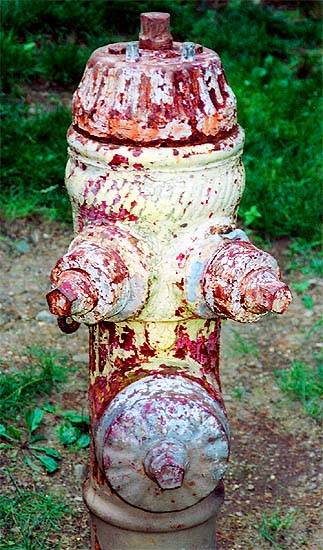

    2391
    Nozzles: 2x 2½" (internally gated), 1x 5"
    Size: 5¾" barrel I.D.
    Note: 4" V.O.
    Location: Private collection
    Photo: © J. Kaminski

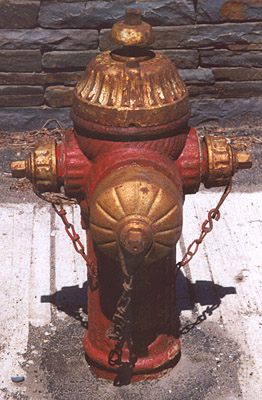

    1060
    Nozzles: 2x 2½", 1x 4½"
    Size: 6¼" barrel I.D.
    Note: ? V.O. / 1943
    Location: New York state
    Photo: © 2001, J. Kaminski
    1021
    Nozzles: 2x 2½", 1x 4½"
    Size: 7" barrel I.D.
    Note: no V.O. / no date
    Location: John A. collection
    Photo: © 2001, J. Anderson

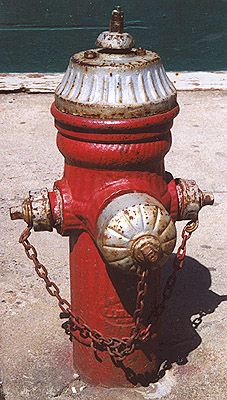

    1063
    Nozzles: 2x 2½", 1x 4½"
    Size: 7" barrel I.D.
    Note: no V.O. / no date
    Location: New York state
    Photo: © 2001, J. Kaminski
    1025
    Nozzles: 2x 2½", 1x 4½"
    Size: 7" barrel I.D.
    Note: 5" V.O. / 1946
    Location: John A. collection
    Photo: © 2001, J. Anderson

      List 75: 2 pc. barrel, logo is 4¼" width oval with wide border
    This group is believed to be the first List 75s with a two piece barrel; and the last version of the List 75 to be manufactured.
  • Note the continued lack of the quotation marks on either side of Ludlow and that the words TRADE MARK have been dropped.
  • The oval of this logo is continues to have a WIDE (5/8") border that is the same height as the fluting. The two logos per hydrant can be found on the front & back of the barrel.
  • The appropriate bonnet for this group of List 75s may be without a patent date.
  • 0175
    Nozzles: 2x 2½"
    Size: 5¾" barrel I.D.
    Location: Viroqua, WI
    Photo: © 1999, J. Quist
    1059
    Nozzles: 2x 2½", 1x 4½"
    Size: 5¾" barrel I.D.
    Location: Ed M. collection
    Photo: © 2002, E. Masminster

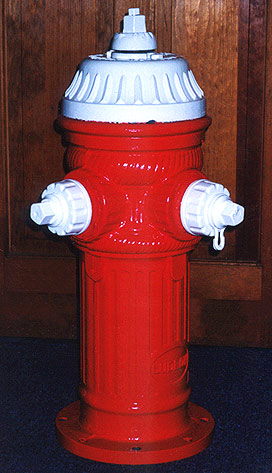

    0883
    Nozzles: 2x 2½"
    Size: 7" barrel I.D.
    Location: Jeff K. collection
    Photo: © 2001, J. Kaminski

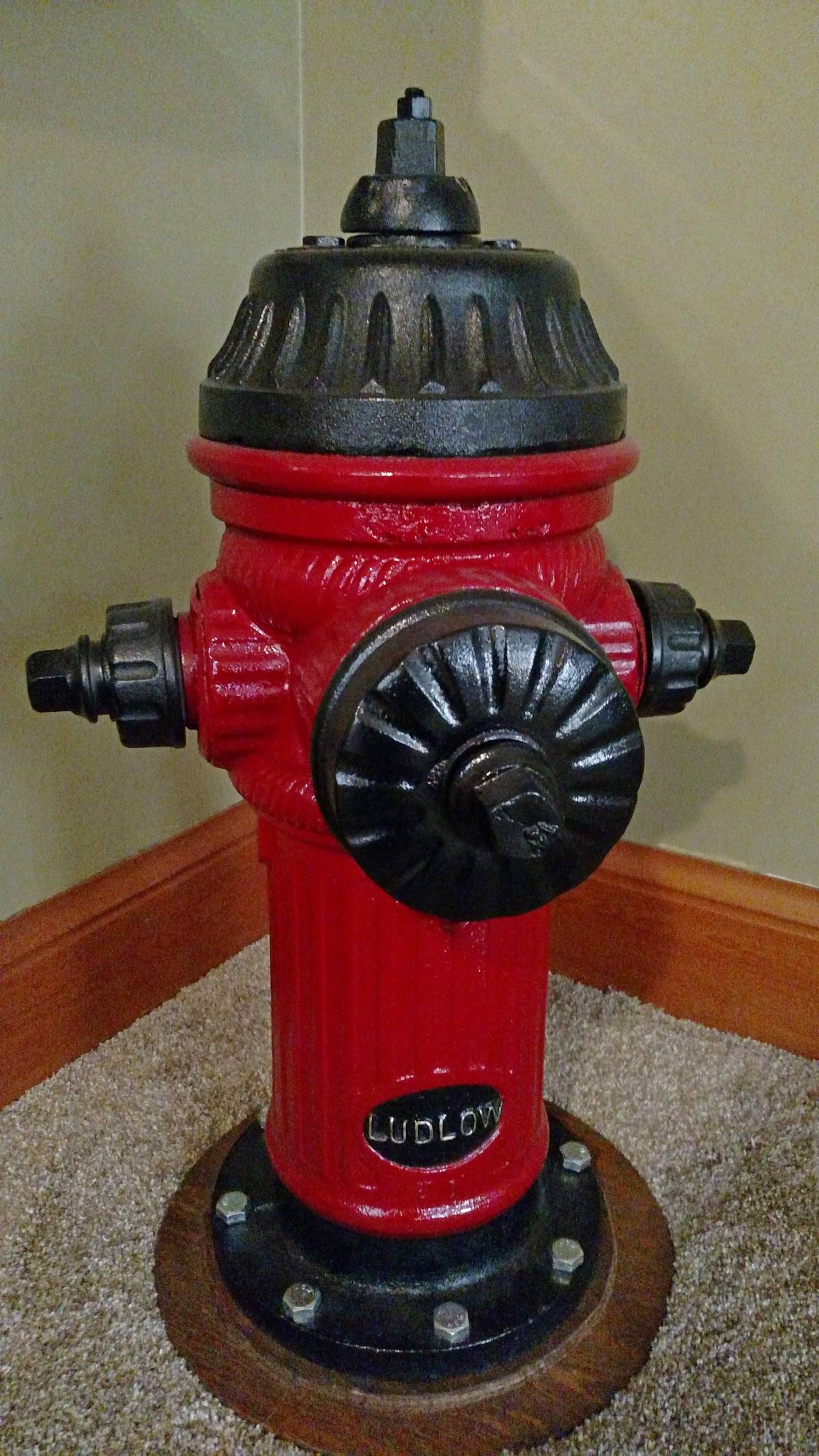

    1358
    Nozzles: 2x 2½", 1x 4"
    Size: 7" barrel I.D.
    Location: Private collection
    Photo: © 2018, Jasper Stemple

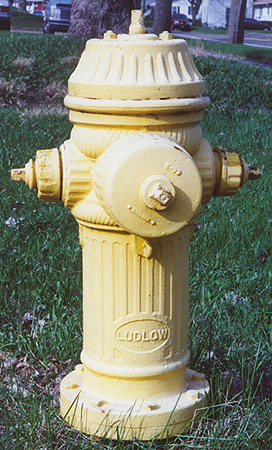

    0595
    Nozzles: 2x 2½", 1x 5"
    Size: 7" barrel I.D.
    Location: Clinton, IA
    Photo: © 2001, J. Anderson

      List 75-0: logo is 4¼" width oval with wide border
    This group continues with a two piece barrel and is believed to be the last step in the evolution of the List 75 ... called the List 75-0. This group was produced into the 1960s.
  • The external difference between the List 75-0 and the last List 75 is the different bonnet design which has exposed bonnet holddown nuts/studs. The operating nut umbrella is also much larger; similar to that of the List 90.
  • Note that the logo remains the same as the last List 75. The two logos per hydrant can be found on the front & back of the barrel.
  • List 75-0 and List 90-0 Hydrant Information
  • 0713
    Nozzles: 2x 2½"
    Size: 5¾" barrel I.D.
    Dated: 195?
    Location: Massachusetts
    Photo: © 1996, J. Kaminski

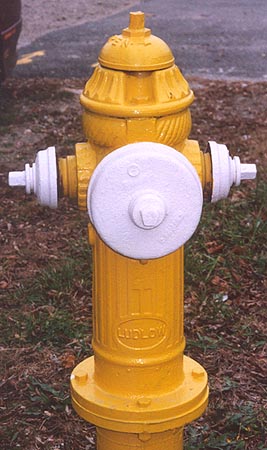

    0714
    Nozzles: 2x 2½", 1x 5"
    Size: 5¾" barrel I.D.
    Dated: 195?
    Location: Massachusetts
    Photo: © 2001, J. Kaminski

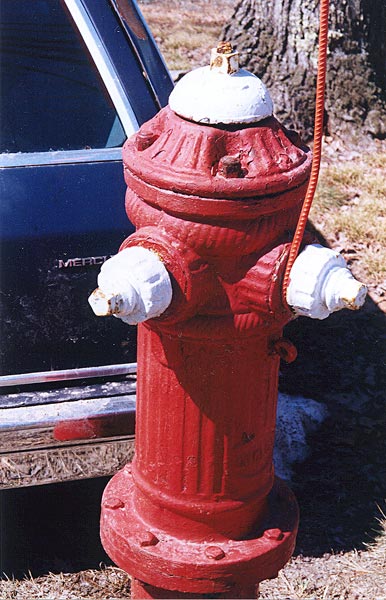

    1031
    Nozzles: 2x 2½"
    Size: 7" barrel I.D.
    Dated: 195?
    Location: Massachusetts
    Photo: © 2001, J. Kaminski

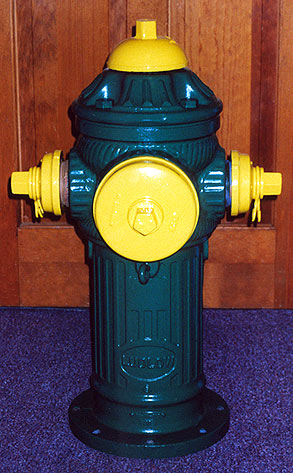

    0884
    Nozzles: 2x 2½", 1x 5"
    Size: 7" barrel I.D.
    Dated: 1966
    Location: Jeff K. collection
    Photo: © 2001, J. Kaminski
