Ludlow Valve Mfg. Co. - Troy, NY Patent and List 78 Flush models |
|

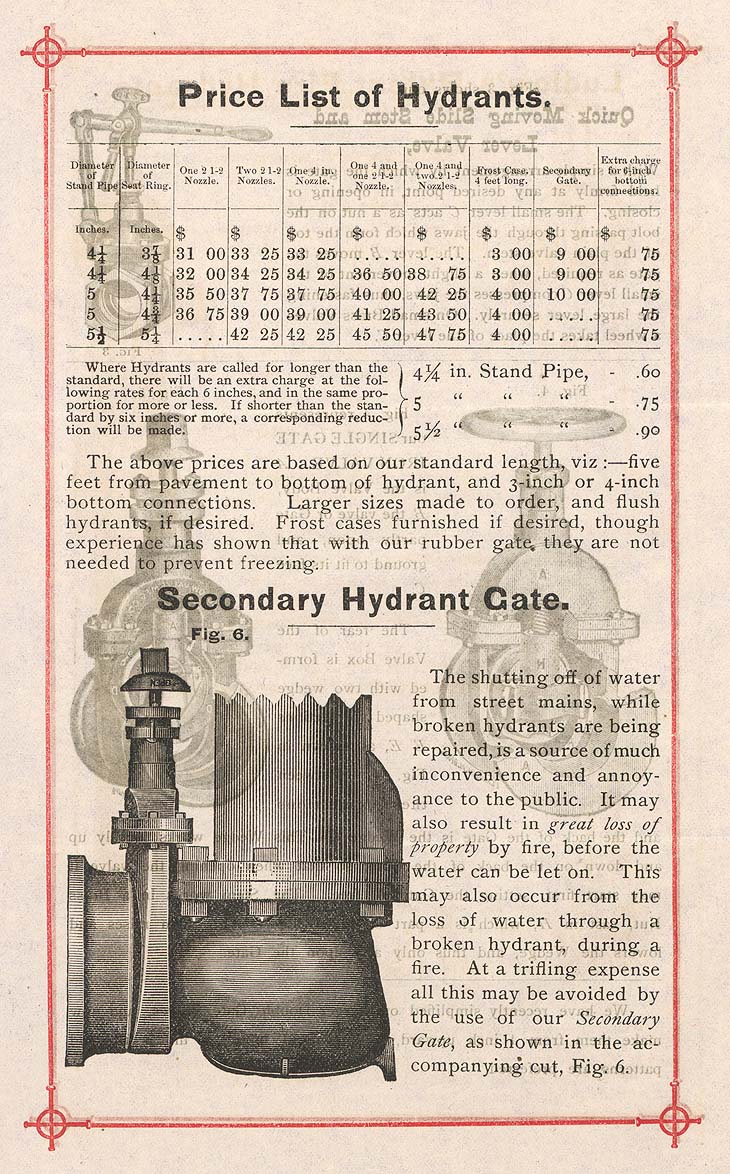

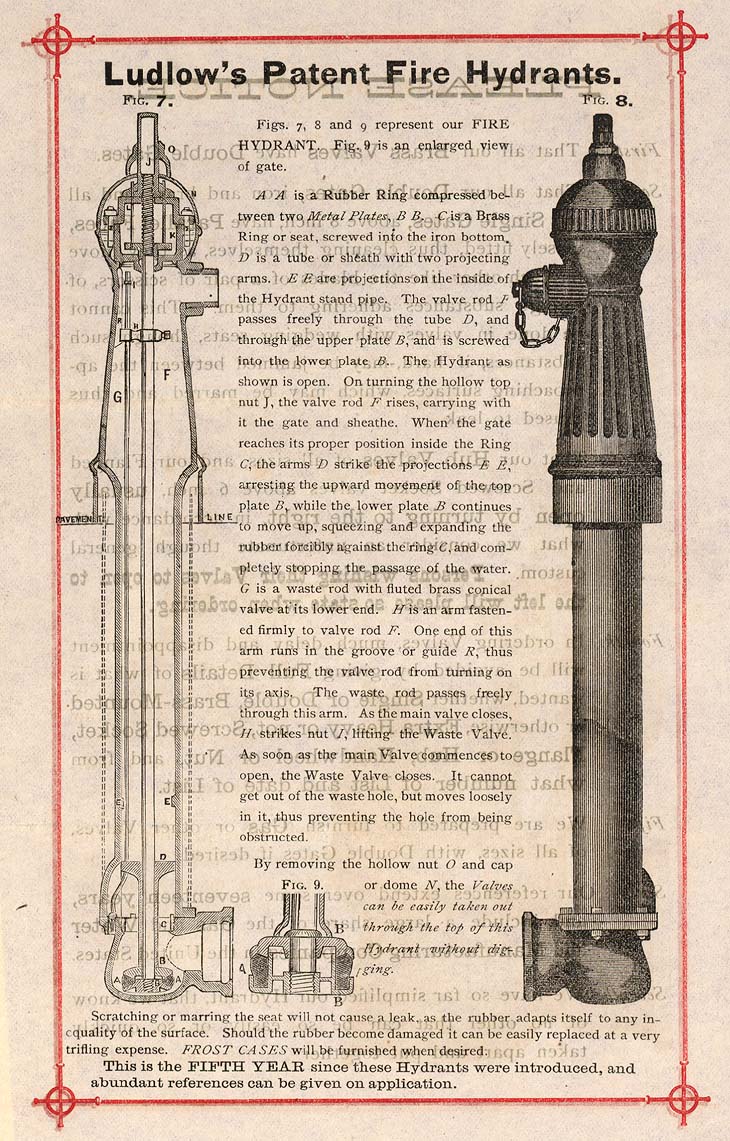

Ludlow's Patent Hydrant is a one piece barrel design. "PAT SEPT.1874" is cast on top of the bonnet of some of the these hydrants. A full description of the Patent hydrant appears in the 1878 Ludlow Valve and Hydrant Brochure. The hydrants pictured below all appear to be of the same barrel size; however, several sizes were listed as being available in the 1878 Ludlow Hydrant Price List. Note: A flush type hydrant -- made to order -- was offered, which would have been made prior to and therefore different from the slide gate model listed below.
|

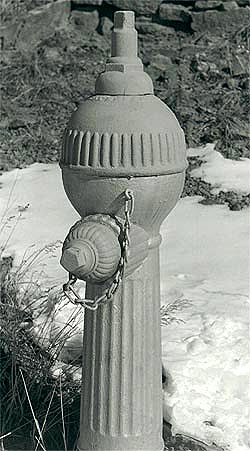

0471 Nozzles: 1x 2½" Location: unknown Photo: © 2000, R. Porterfield |

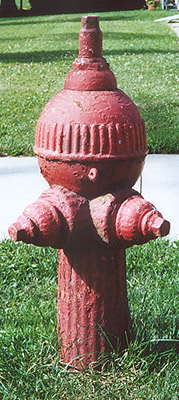

0064 Nozzles: 2x 2½" Location: Illinois Photo: © 2001, J. Anderson |

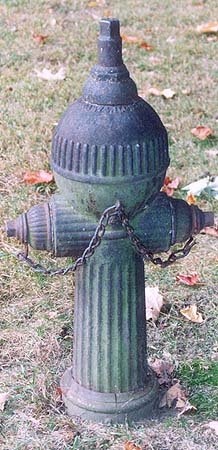

0470 Nozzles: 2x 2½" Location: Massachusetts Photo: © 2004, J. Kaminski |

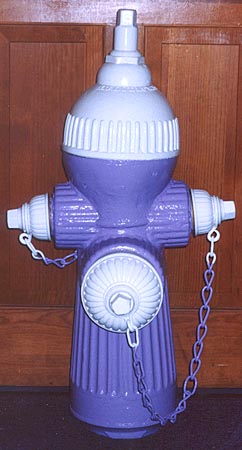

0712 Nozzles: 2x 2½", 1x 4" Location: Jeff K. collection Photo: © 2002, J. Kaminski |
|
|
Barrel I.D. | Valve Opening | Barrel O.D. |
---|---|---|
3" |
2" |
4 1/2" |
4 5/8" |
3" |
6 1/8" |
5 3/4" |
4" |
7" |

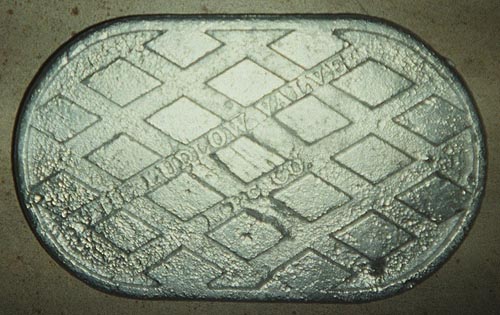

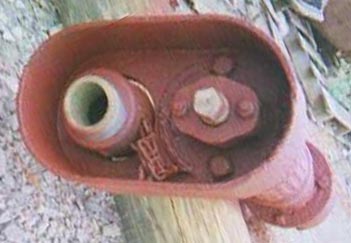

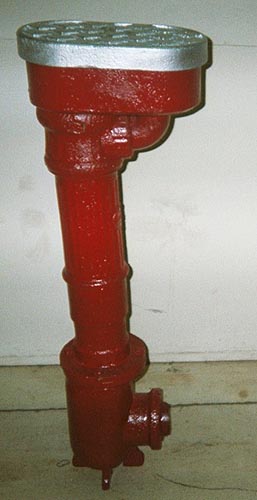

1685 Nozzle: 1x 2½" Size: ~5¾" barrel I.D. Logo: 4¼" front only Nut pockets: yes See also: top view and cover Location: Virginia Photo: © 2002, R. Howard |
