U.S. Patent #845505

To view the full patent, jump to the U.S. Patent Office Web-site

A TIFF plug-in for your browser is required to view the patent image files at the U.S. Patent Office Web-site.

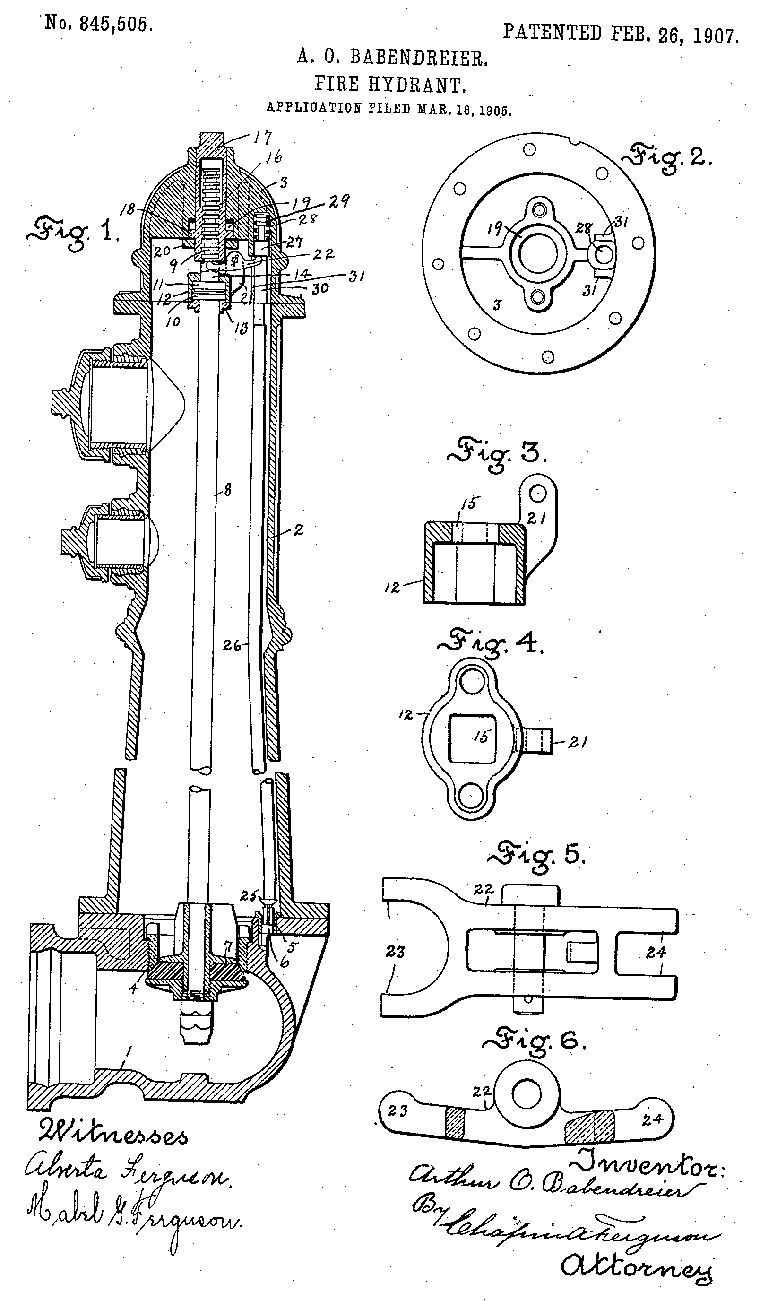

Reproduced here is the page of drawings for U.S. Patent #845505.
Inventor: Arthur O. Babendreier.  Application: early Baltimore, MD City Specification hydrant.
Issue Date: February 26, 1907.
