re-issue U.S. Patent #RE4475

To view the full patent, jump to the U.S. Patent Office Web-site

A TIFF plug-in for your browser is required to view the patent image files at the U.S. Patent Office Web-site.

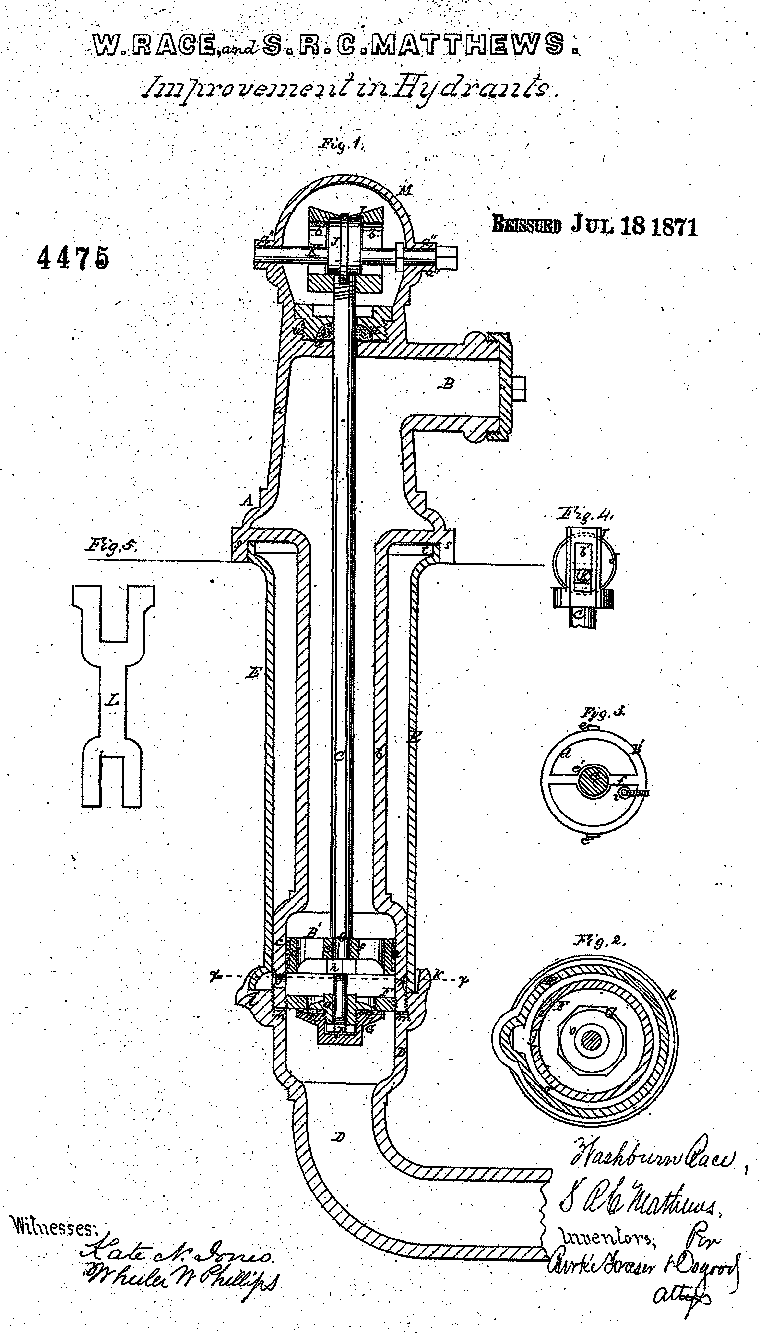

Reproduced here is the page of drawings for U.S. Patent #RE4475.
Inventors: Washburn Race, Lockport, NY & Samuel R.C. Mathews, Philadelphia, PA.   Assignee: S.R.C. Mathews
Issue Date: July 18, 1871.
