U.S. Patent #94749

To view the full patent, jump to the U.S. Patent Office Web-site

A TIFF plug-in for your browser is required to view the patent image files at the U.S. Patent Office Web-site.

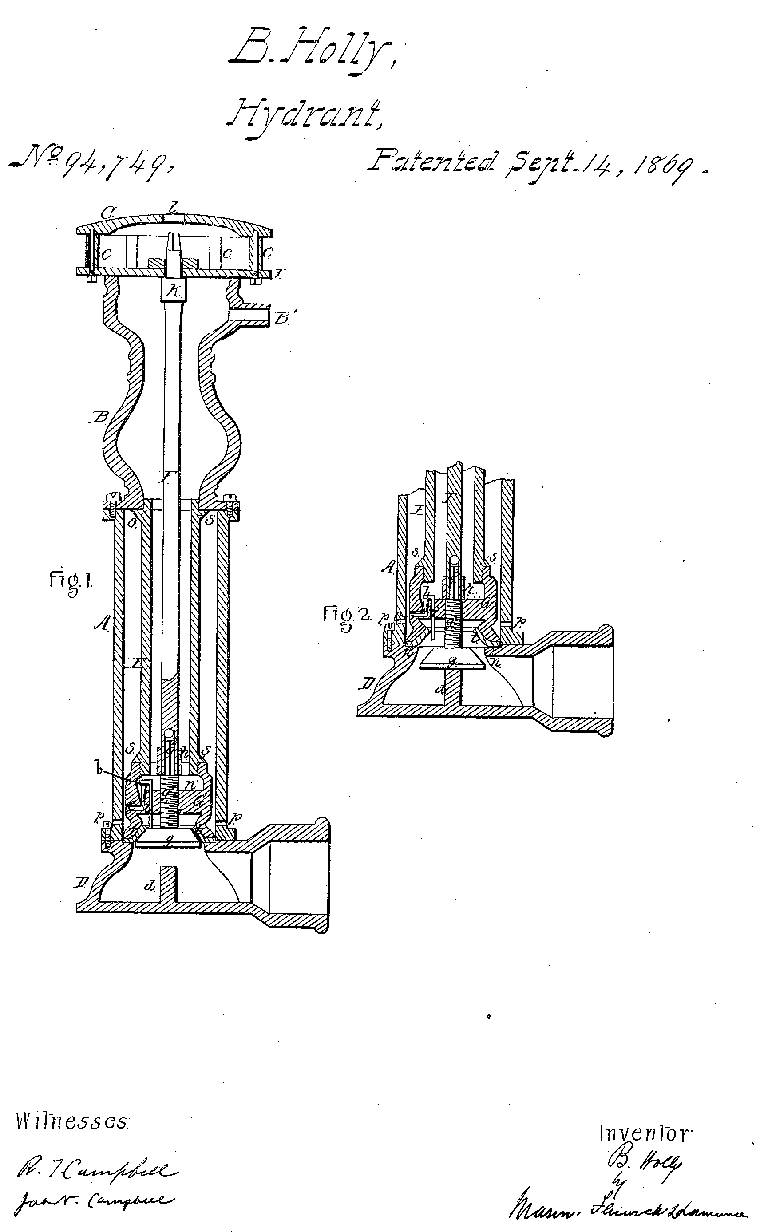

Reproduced here is the page of drawings for U.S. Patent #94749.
Inventor: Birdsill Holly, Lockport, NY.  Hydrant produced by: Holly Manufacturing Company
Issue Date: September 14, 1869.
